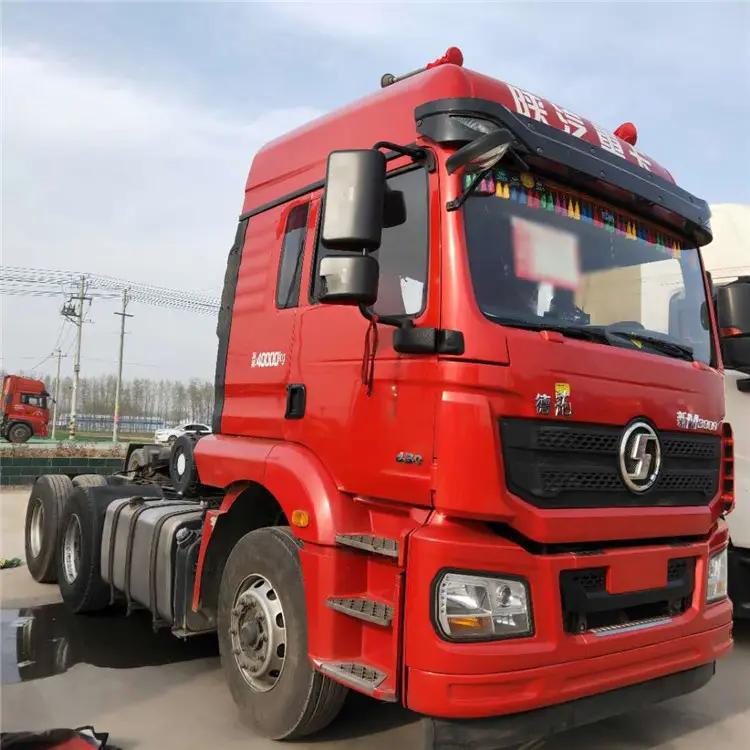

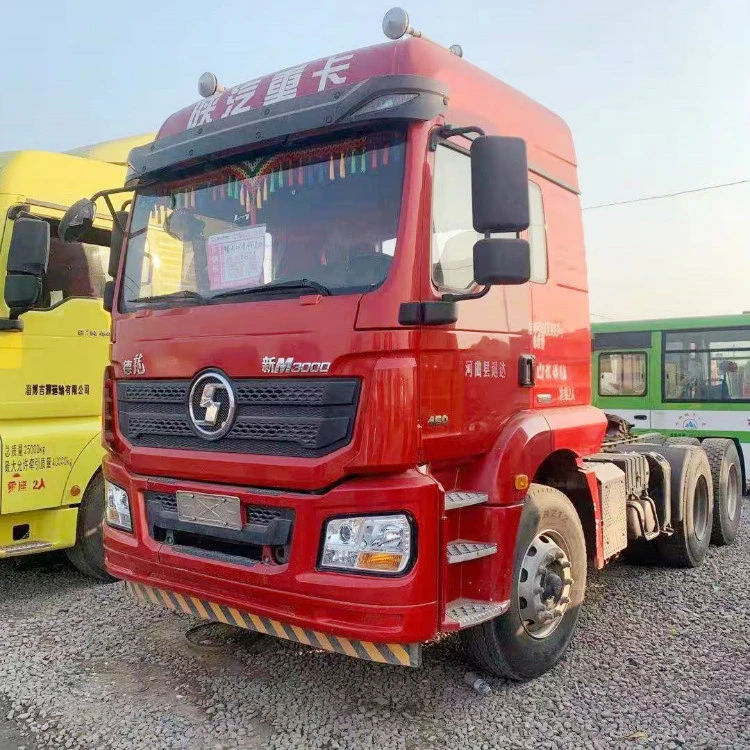

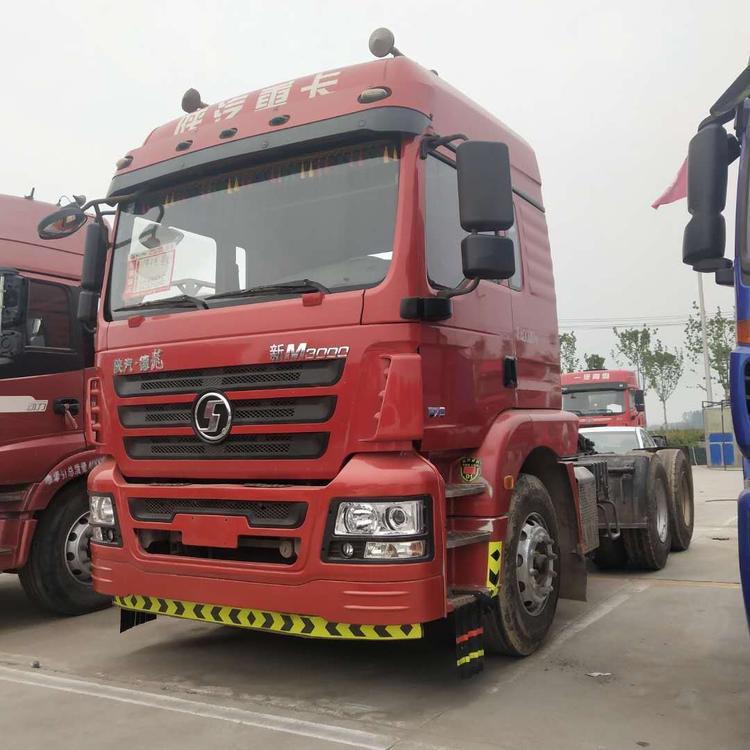

Delonghi New M3000 Tractor
Drive type: 6X4
Wheelbase: 3775+1400 mm
Engine: Weichai WP13NG460E61 Weichai WP13NG460E61
Transmission: Faster 12JSDX240TA
Shaanqi Delong new M3000 tractor is a cost-effective logistics transport vehicles, its detailed parameters are as follows:
| Model: | SX4259MD4TLQ1 |
| Drive type: | 6X4 |
| Wheelbase: | 3775+1400 mm |
| Engine: | Weichai WP13NG460E61 Weichai WP13NG460E61 |
| Transmission: | Faster 12JSDX240TA |
| Rear axle speed ratio: | 3.7 |
| Length: | 7.46 metres |
| Width: | 2.55 metres |
| Height: | 3.67 metres |
| Front wheelbase: | 2070 mm |
| Rear wheelbase: | 1860/1860 mm |
| Overall mass: | 8.8 tonnes |
| Gross mass: | 25 tonnes |
| Gross towing weight: | 40 tonnes |
| Maximum speed: | 110 km/h |
| Engine parameters: | Displacement 12.54L, emission standard National VI, max. horsepower 460hp, max. output power 338kW, max. torque 2300N-m, max. torque speed 1100-1500rpm, rated speed 1900rpm. |
| Cab parameters: | cab high roof, allowing the number of passengers 3 people, the number of seats one and a half rows. |
| Transmission parameters: | 12 forward gears, 2 reverse gears. |
| Fuel tank parameters: | fuel tank volume 1000L. |
| Chassis parameters: | rear axle description 11.5T single-stage, front axle permissible load 7000kg, rear axle permissible load 18000 (double axle group) kg, speed ratio 3.7, the number of spring plates 1/3, 2/3, 1/-/-, 2/-/-, 2/2 +-/2+-, 1/2 +-/2+-, saddle 50#. Tyre size is 12R22.5 18PR and handling features include ABS. |
| Fuel consumption performance: | the fuel tank has a volume of 700L, and the range can reach about 2000 kilometres. |
In addition, the vehicle is equipped with Weichai WP12.460E62 engine, with a maximum output of 460 hp, peak torque of 2,200 Nm, peak torque speed range of 1,000-1,400 rpm, in line with the National VI emission standards. It is matched with Faster 12JSXD220TA-B manual transmission, and the housing material is aluminium alloy. It adopts 5.5T maintenance-free front axle with Handleman technology and 11.5T single-stage rear axle with MAN technology. The front 2 rear 3 less leaf spring design is in line with the market trend of lightweight suspension. The use of aluminium alloy also helps to reduce the vehicle weight. Thanks to the lightweight design of the entire vehicle, the new M3000's deadweight is kept at 8.33 tonnes, and according to the estimation of a 6-tonne trailer, with the upper limit of 49-tonne GVW, its compliant loading mass can reach 34.67 kilotonnes, which is an excellent loading capacity.
The above is for reference only, for more information, please contact our customers!
