371 Hp Used Tipper

Driving form: 6x4
Model：ZZ3257N3847A
Cab：HW76
Engine(Hp)：371
Power(Kw)：273

Send Inquiry

Product Introduction

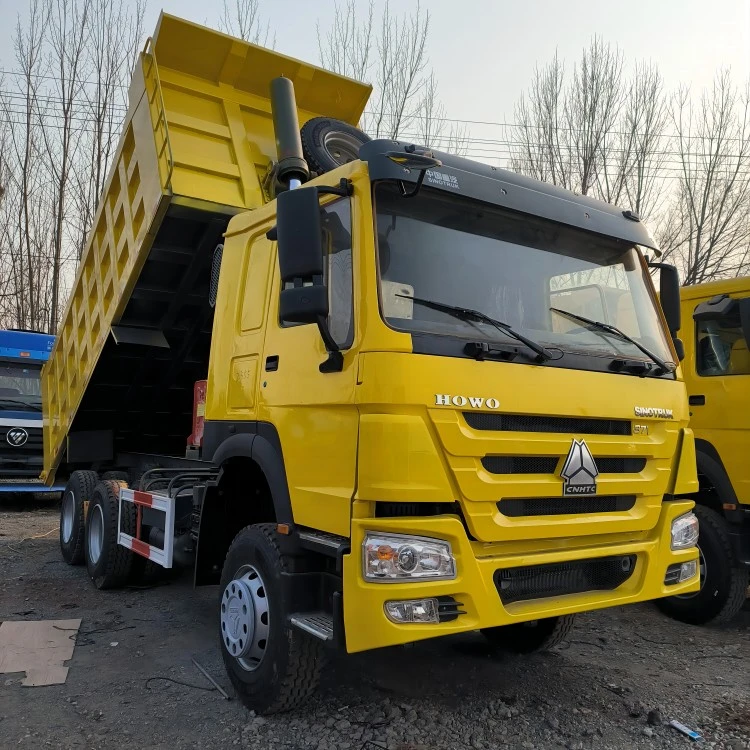

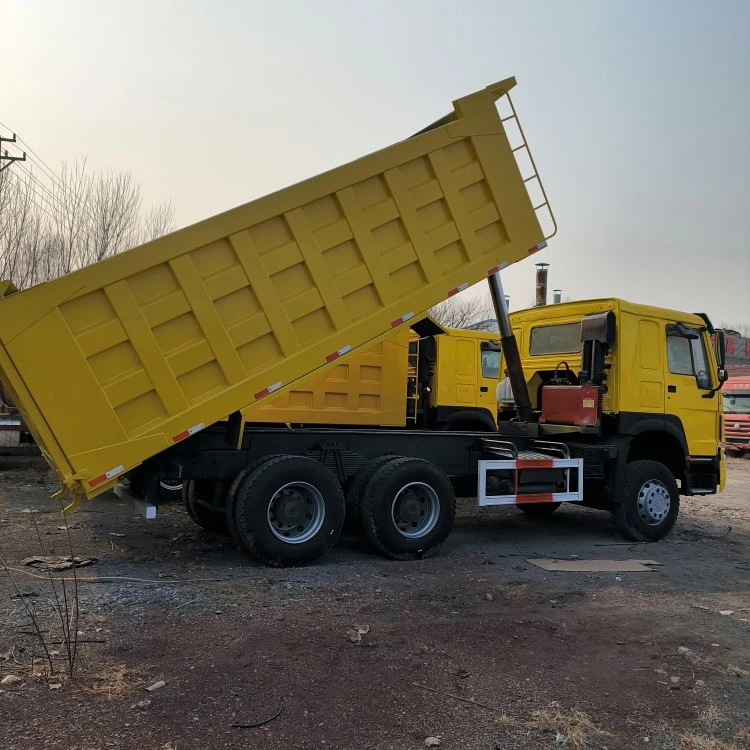

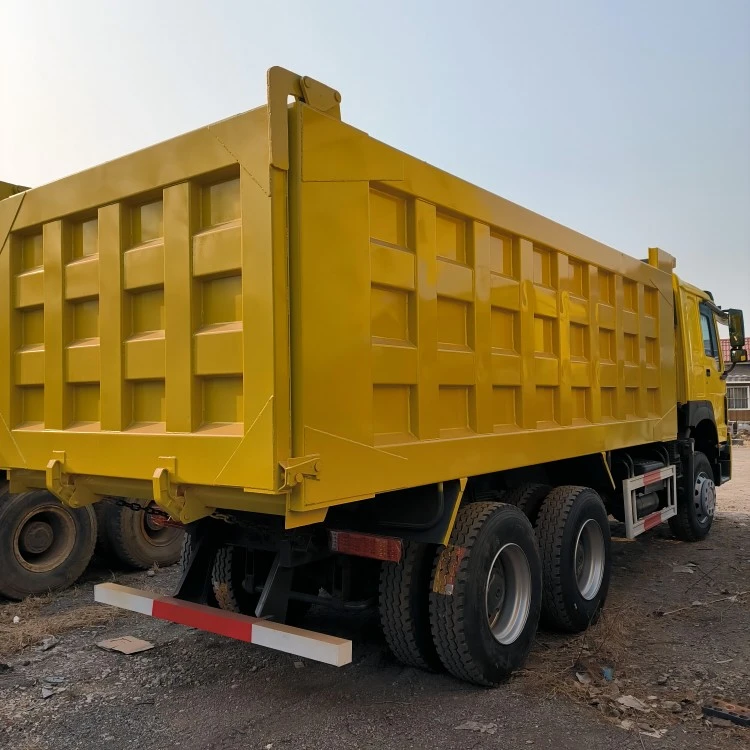

SINOTRUK HOWO Dump Truck

Driving form	6x4
Model	ZZ3257N3847A
Cab	HW76
Engine(Hp)	371
Power(Kw)	273
Transmission	HW19710
Front Axle	HF9
Steering	ZF
Rear Axles	HC16

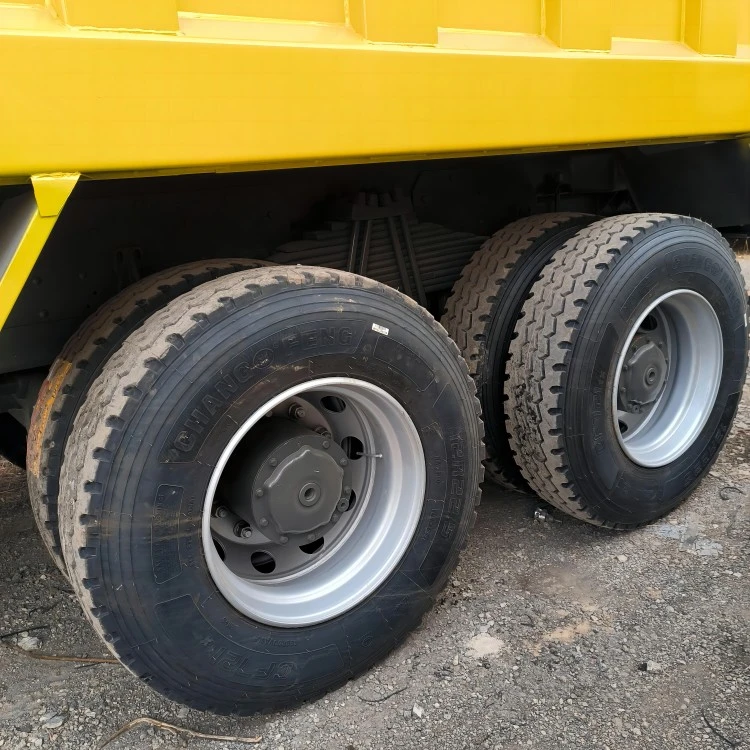

Wheels & Tyres	1200R20
Carriage Internal Dimensions(mm)	5600×2300×1500
Cubage (m3)	19.32
Hydraulic Lift of carriage	Middle Lift
Steel sheet	Floor thickness 10mm, side wall thickness 8mm
Dimensions(mm)	8545×2496×3445
Kerb weight (Kg)	12600

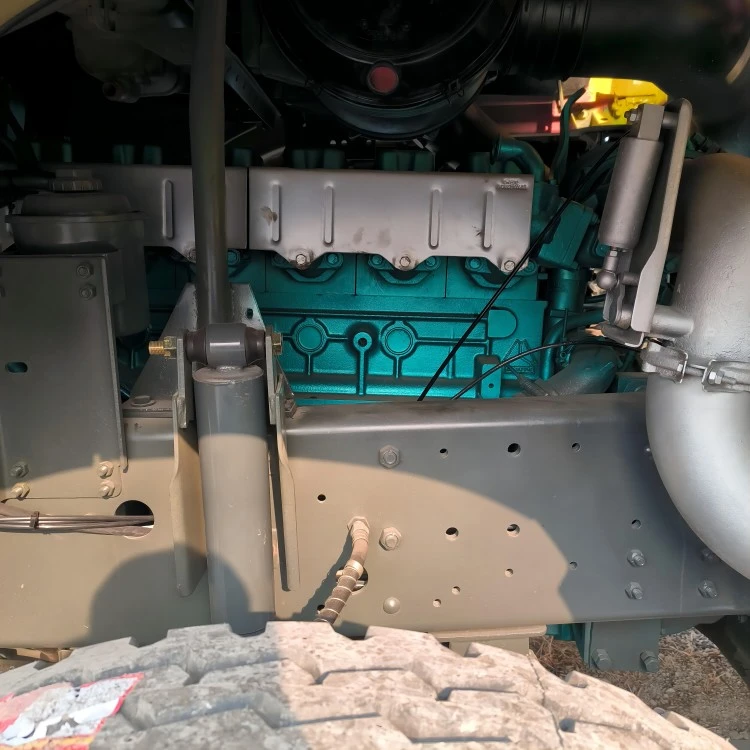

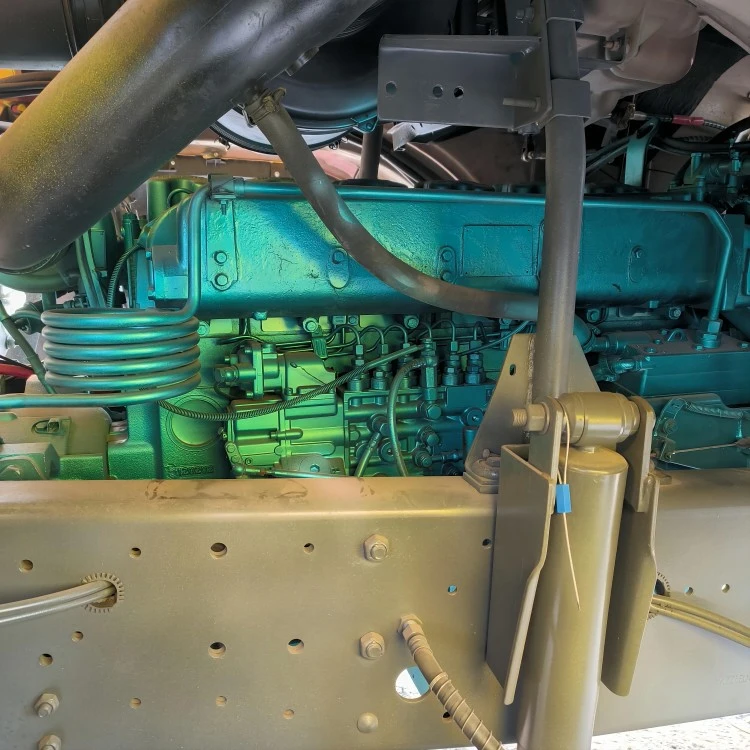

Engine

Model：WD615

Horsepower：371

Maximum output Kw/r/min：273

Maximum torque N.m/r/min：1350/1300-1600

Type：6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection

Bore x Stroke：126x130mm

Valve：2

Displacement：9.726L

Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan

Cab：SINOTRUK HW76 Lengthen cab, single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system, German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner

Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Transmission：SINOTRUK HW19710 ,10 forward and 2 reverse

Ratio: 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2)

Front Axle：SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.

Steering：ZF steering gear and ZF steering oil pump, system pressure 18MPa

ZF Steering Gear Box ,hydraulic steering with power assistance,Ratio:22.2-26.2

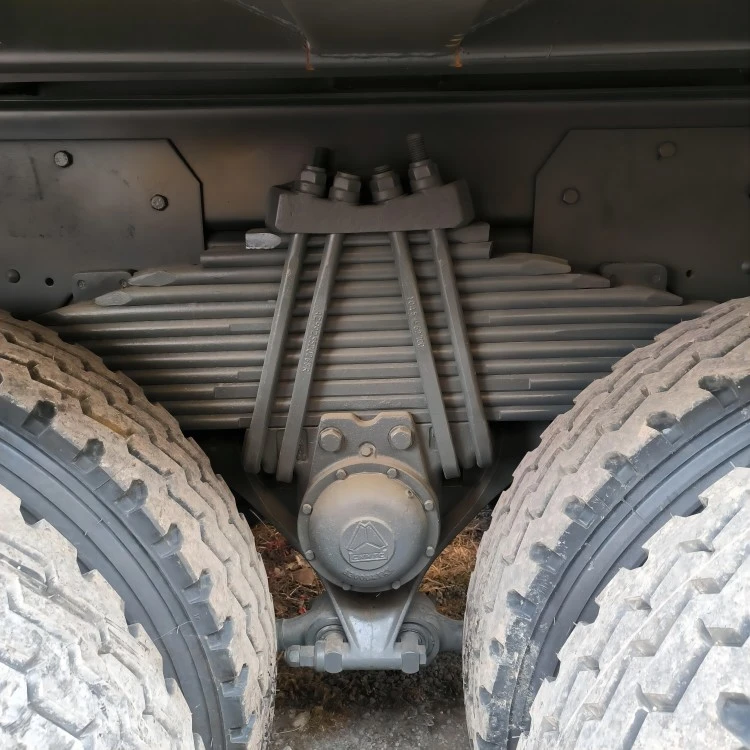

Rear Axles：SINOTRUK HC16 Heavy reduction drive axle, hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
