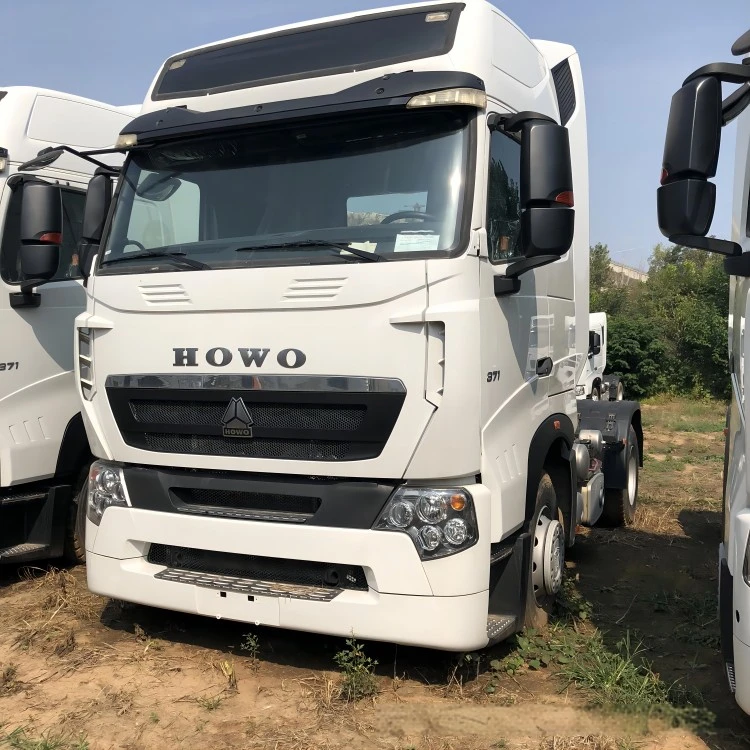

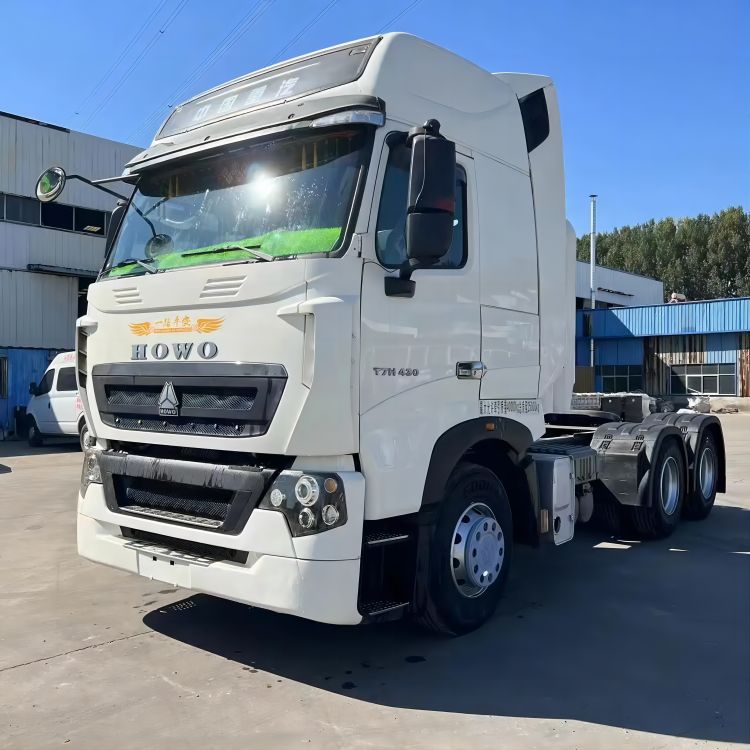

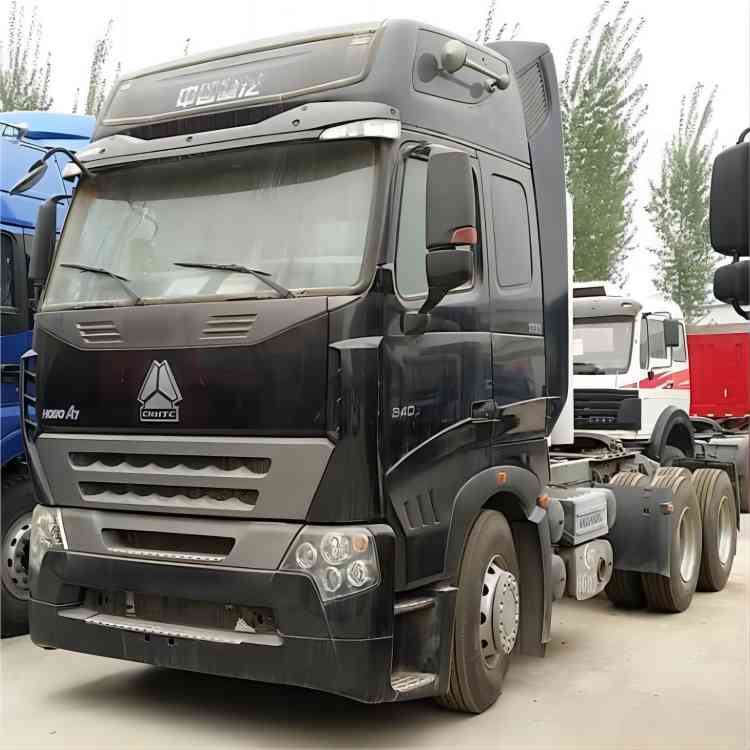

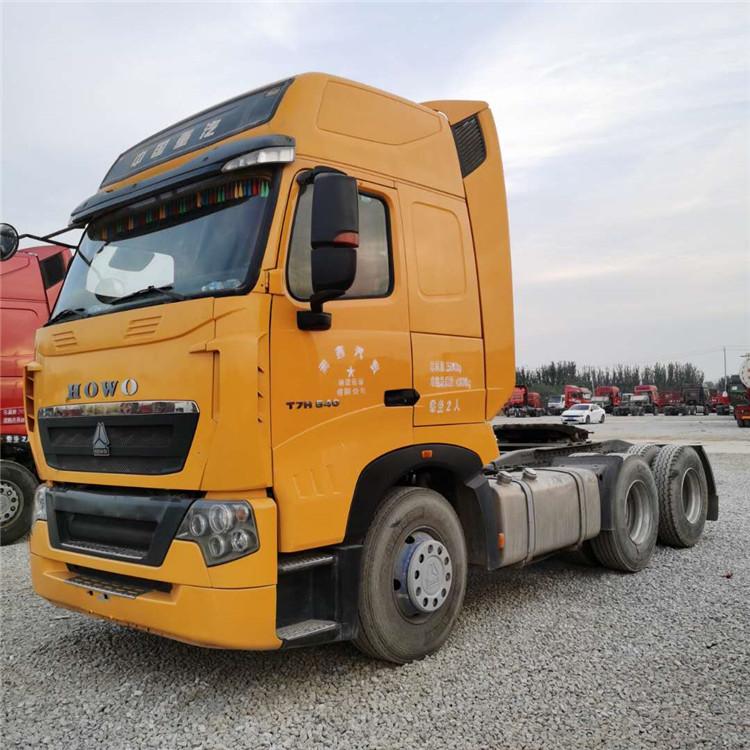

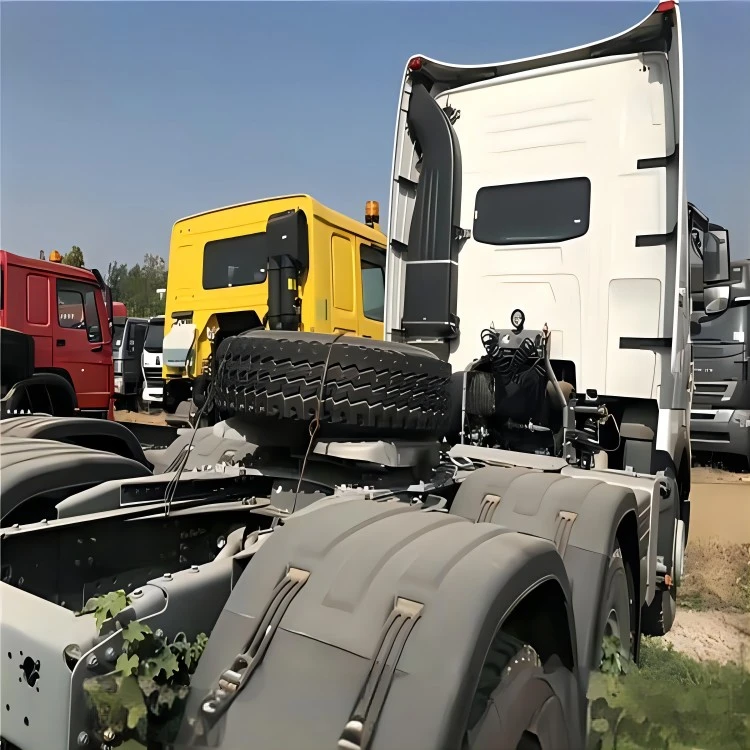

6×4 Heavy Duty Truck HOWO A7 Tractor
Engine Model: China National Heavy Duty Truck WD615.96E
Maximum horsepower: 375 horsepower
Emission Standard: National III
Transmission Model: China National Heavy Duty Truck HW19710
6×4 Heavy Duty Truck HOWO A7 Tractor is a heavy duty truck, its basic information, engine parameters, transmission parameters and chassis parameters are introduced as follows:
Driving form: 6X4
Engine Model: China National Heavy Duty Truck WD615.96E
Maximum horsepower: 375 horsepower
Emission Standard: National III
Transmission Model: China National Heavy Duty Truck HW19710
Forward gear: 10 gears
Parameter Configuration
Parameter description: Standard
Option - can be equipped with optional engine according to user's requirements
Basic Information
| Model | ZZ4257N3247N1B |
| Driving form | 6X4 |
| Wheelbase | 3225+1350mm |
| Transmission | China National Heavy Duty Truck HW19710 |
| Length | 6.985 meters |
| Width | 2.496 meters |
| Height | 3.85 meters |
| Front wheelbase | 2022,2041mm |
| Rear wheelbase | 1830/1830mm |
| Overall vehicle weight | 8.8 tons |
| Gross mass | 25 tons |
| Gross towing mass | 40 tons |
| Maximum speed | 101km/h |
| Place of origin | China |
| Tonnage Class | Heavy Truck |
| Remarks | Remote control door key. Window curtain. air conditioning |
| Fuel Type | Diesel |
Engine Parameters
| Engine Model | China National Heavy Duty Truck WD615.96E |
| Engine Brand | China National Heavy Duty Truck |
| Number of cylinders | 6 cylinders |
| Fuel type | Diesel |
| Cylinder Arrangement | Inline |
| Displacement | 9.726L |
| Emission Standard | National III |
| Maximum horsepower | 375hp |
| Maximum output power | 276kW |
| Maximum torque | 1500N-m |
| Maximum torque speed | 1100-1600rpm |
| Rated speed | 2200rpm |
Cab parameters
Number of passengers：3 persons
Transmission Parameters
| Transmission Model | China National Heavy Duty Truck HW19710 |
| Transmission Brand | China National Heavy Duty Truck |
| Shift mode | manual |
| Forward gear | 10 gears |
| Reverse gears | 2 |
| Fuel tank/gas tank material | iron shell, aluminum alloy |
| Fuel tank capacity | 600L |
Chassis parameters
Rear Axle Description: Speed ratio 4.42
Speed Ratio: 4.42
Suspension form: Multi-layer steel plate springs
Number of spring leafs: 4/12,9/12
Tires
Number of tires: 10
Tire specifications: 12.00R20
