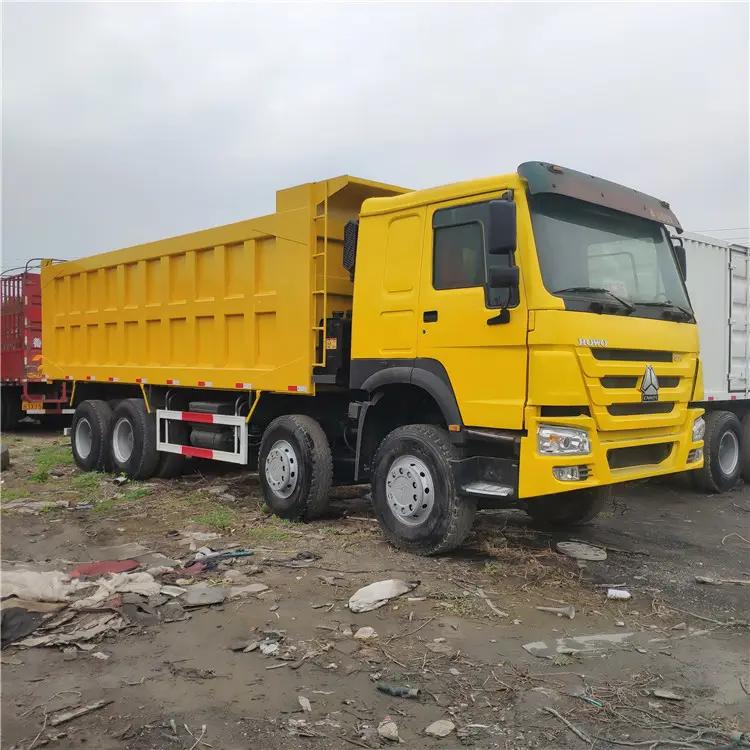

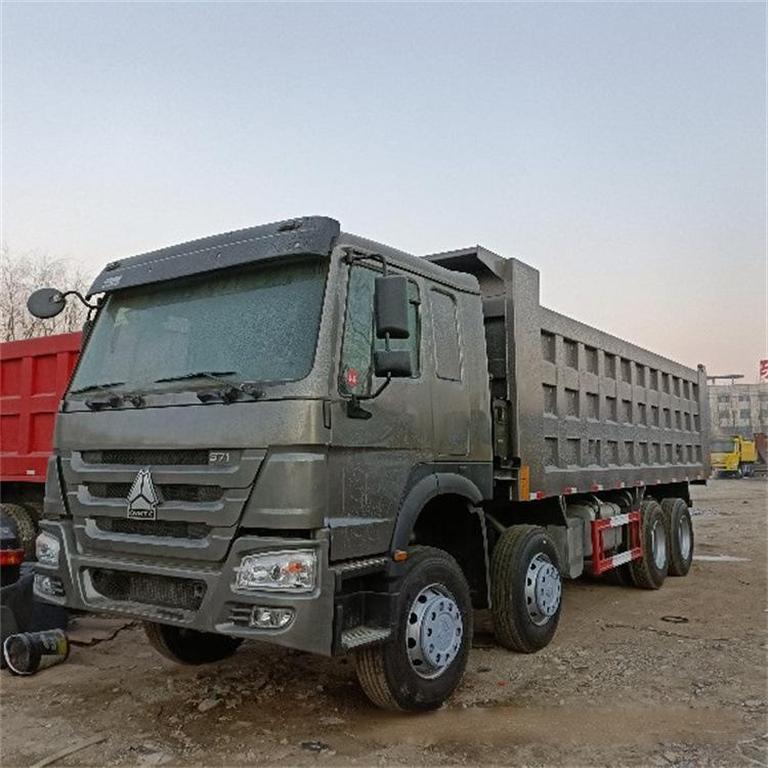

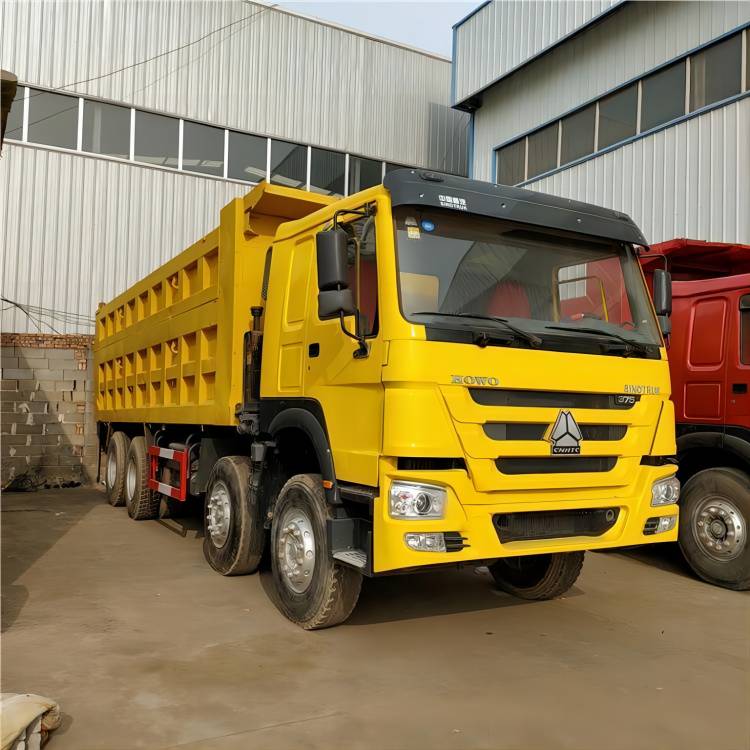

375hp Dump Truck
The body length is 9.73 meters, the body width is 2.496 meters, and the body height is 3.237 meters. The front wheel pitch is 2022 / 2022mm and the rear wheel pitch is 1830 / 1830mm.
The announced model is ZZ3317N3067C, the drive form is 8X4, and the wheelbase is 1800 + 2800 + 1350mm.
The body length is 9.73 meters, the body width is 2.496 meters, and the body height is 3.237 meters. The front wheel pitch is 2022 / 2022mm and the rear wheel pitch is 1830 / 1830mm.
The weight of the vehicle is 14.93 tons, the rated load is 15.94 tons, and the total mass is 31 tons. The tonnage level is a heavy truck. The approach angle is 19 degrees and the departure angle is 23 degrees.
The car is made in Jinan, Shandong province, China, which is suitable for urban construction muck and road transportation market segments.
The dump mode of the container is post unloading, the length of the container is 7 meters, the width of the container is 2.3 meters, the height of the container is 1.2 meters, and the container is rear dump.
The engine model is Sinotruk WD615.96E, the number of cylinders is 6, the fuel type is diesel, the displacement is 9.726L, and the emission standard is the national third. The maximum horsepower is 375 horsepower, a maximum output of 276kW, a maximum torque of 1500 N·m, a maximum torque speed of 1100-1600rpm and a rated speed of 2200rpm. The engine form is in-line six-cylinder, water cooling, four-stroke, pressurized and medium cooling, electronically controlled fuel supply rate fuel injection pump, EGR.
The transmission model is Sinotruk HW19710, with a forward gear of 10 gears and 2 reverse gears.
The fuel tank capacity is 400L.
The rear axle is described as AC16, with a allowable load of 16000kg and a speed ratio of 5.45. The number of spring blades is left 14 right 13 / left 14 right 13 / 12,11 / 11 / 12,11 / 11 / -, 4 / 4 / -.
There are two kinds of 11.00-20 and 12.00-20 tires, and the number of tires is 12.
Strong power: Equipped with a high-power engine to provide excellent power performance.
Efficient transportation: With large load capacity and excellent fuel economy, it can meet the needs of heavy load transportation.
High reliability: Through strict quality testing, to ensure the stable operation of the vehicle under various working conditions.
Safety performance: Equipped with advanced braking system and safety protection devices to ensure the safety of drivers and goods.
Comfortable driving: Adopt humanized design to provide a comfortable driving environment and reduce the fatigue of drivers.
